Android实验报告一
姓名:丁军峰
班级:信科12-3
学号:08123448
一、 实验内容
编写一个Android应用程序,实现对自己物品的管理,功能包括添加、删除和查询等
二、 实验目的
了解android开发流程,掌握SQLite数据库和ListView控件的使用
三、 需求分析
使用SQLite数据库,使用ListView控件显示物品
四、 实验过程
1. 创建程序,设计用户交互界面
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical" >
<LinearLayout
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="1"
android:orientation="vertical">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="物品清单"
/>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="物品名称"/>
<EditText
android:id="@+id/id_et_stuffname"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:inputType="text"/>
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="物品个数"/>
<EditText
android:id="@+id/id_et_stuffamount"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:inputType="text"/>
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="物品价格"/>
<EditText
android:id="@+id/id_et_stuffprize"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:inputType="text"/>
</LinearLayout>
</LinearLayout>
<FrameLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="horizontal">
<Button
android:id="@+id/id_bt_add"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="添加记录"
android:layout_marginLeft="10dp"
android:layout_marginRight="10dp"
android:layout_marginTop="6dp"
android:layout_marginBottom="7dp"
android:gravity="center"
android:padding="5dp"
android:textColor="#727272"
android:background="@drawable/recordbutton"
android:minHeight="0dp"/>
<Button
android:id="@+id/id_bt_all"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="显示全部"
android:layout_marginLeft="10dp"
android:layout_marginRight="10dp"
android:layout_marginTop="6dp"
android:layout_marginBottom="7dp"
android:gravity="center"
android:padding="5dp"
android:textColor="#727272"
android:background="@drawable/recordbutton"
android:minHeight="0dp" />
</LinearLayout>
<View
android:layout_width="match_parent"
android:layout_height="1dp"
android:background="#eee"/>
</FrameLayout>
</LinearLayout>
2.创建ListView Item布局
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="horizontal"
android:background="#ffffffff">
<ImageView
android:id="@+id/id_ig_name"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:src="@drawable/ic_menu_paste_holo_light"/>
<TextView
android:id="@+id/id_tv_name"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:textColor="#000000"
android:textSize="18sp"/>
<TextView
android:id="@+id/id_tv_amount"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:textColor="#000000"
android:textSize="18sp"/>
<TextView
android:id="@+id/id_tv_price"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:textColor="#000000"
android:textSize="18sp"/>
<ImageButton
android:id="@+id/id_ib_delete"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:src="@drawable/ic_menu_delete"
android:background="#ffffffff"
android:onClick="deleteItem"/>
</LinearLayout>
3.创建数据库
package com.LIQI.Stuff;
import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteDatabase.CursorFactory;
import android.database.sqlite.SQLiteOpenHelper;
public class MySQLiteOpenHelper extends SQLiteOpenHelper {
public MySQLiteOpenHelper(Context context
) {
super(context, "LIQI.db", null, 1);
// TODO Auto-generated constructor stub
}
@Override
public void onCreate(SQLiteDatabase db) {
db.execSQL("create table LIQI(_id integer primary key autoincrement,stuff,amount,price)");
}
@Override
public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {
// TODO Auto-generated method stub
}
}
4.创建account类
package com.LIQI.Stuff;
publicclass Stuff {
private String stuffName;
privateint StuffAmount;
privatefloat StuffPrice;
public String getStuffName() {
return stuffName;
}
publicvoid setStuffName(String stuffName) {
this.stuffName = stuffName;
}
publicint getStuffAmount() {
return StuffAmount;
}
publicvoid setStuffAmount(int stuffAmount) {
StuffAmount = stuffAmount;
}
publicfloat getStuffPrice() {
return StuffPrice;
}
publicvoid setStuffPrice(float stuffPrice) {
StuffPrice = stuffPrice;
}
}
5.创建数据操作逻辑
package com.LIQI.Stuff;
import java.util.ArrayList;
import java.util.List;
import android.app.Activity;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageButton;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
public class StuffList extends Activity{
private ListView lv;
private SQLiteDatabase mDataBase;
private List<Stuff>stuffInfos;
private MySQLiteOpenHelper mHelper;
@Override
protected void onCreate(Bundle savedInstanceState) {
setContentView(R.layout.show_all);
mHelper=new MySQLiteOpenHelper(this);
lv=(ListView) findViewById(R.id.id_lv);
all();
super.onCreate(savedInstanceState);
}

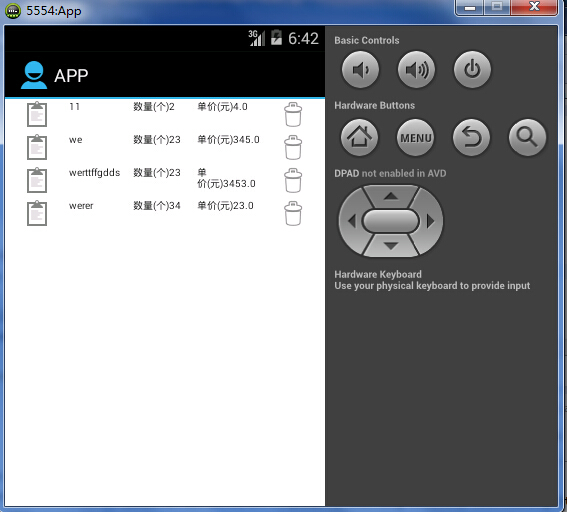

public void all(){
mDataBase=mHelper.getWritableDatabase();
Cursor cursor=mDataBase.query("LIQI", null, null, null, null, null, null);
stuffInfos=new ArrayList<Stuff>();
while(cursor.moveToNext()){
Stuff stuff=new Stuff();
stuff.setStuffName(cursor.getString(1));
stuff.setStuffAmount(cursor.getInt(2));
stuff.setStuffPrice(cursor.getFloat(3));
stuffInfos.add(stuff);
}
cursor.close();
mDataBase.close();
lv.setAdapter( new Myadapter());
}
class Myadapter extends BaseAdapter{
@Override
public int getCount() {
return stuffInfos.size();
}
@Override
public Object getItem(int position) {
// TODO Auto-generated method stub
return null;
}
@Override
public long getItemId(int position) {
// TODO Auto-generated method stub
return 0;
}
@Override
public View getView(final int position, View view , ViewGroup parent) {
view =View.inflate(StuffList.this, R.layout.stuff_item, null);
TextView tv_name=(TextView) view .findViewById(R.id.id_tv_name);
TextView tv_amount=(TextView)view . findViewById(R.id.id_tv_amount);
TextView tv_price=(TextView) view .findViewById(R.id.id_tv_price);
ImageButton iButton=(ImageButton) view.findViewById(R.id.id_ib_delete);
tv_name.setText(stuffInfos.get(position).getStuffName());
tv_amount.setText("数量(个)"+stuffInfos.get(position).getStuffAmount());
tv_price.setText("单价(元)"+stuffInfos.get(position).getStuffPrice());
iButton.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
mDataBase=mHelper.getWritableDatabase();
mDataBase.delete("LIQI","stuff=?", new String []{stuffInfos.get(position).getStuffName()});
mDataBase.close();
stuffInfos.remove(position);
Myadapter.this.notifyDataSetChanged();
}
});
return view;
}
}
}
6.编写界面交互代码
package com.LIQI.Stuff;
import android.app.Activity;
import android.content.ContentValues;
import android.content.Intent;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
public class MainActivity extends Activity implements OnClickListener {
private MySQLiteOpenHelper mHelper;
private SQLiteDatabase mDataBase;
private Button bt_add,bt_all;
private EditText et_stuffName,et_stuffAmount,et_stuffPrice;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.add_data);
mHelper=new MySQLiteOpenHelper(this);
initView();
initAction();
}
public void initView(){
et_stuffName=(EditText) findViewById(R.id.id_et_stuffname);
et_stuffAmount=(EditText) findViewById(R.id.id_et_stuffamount);
et_stuffPrice=(EditText) findViewById(R.id.id_et_stuffprize);
bt_add=(Button) findViewById(R.id.id_bt_add);
bt_all=(Button) findViewById(R.id.id_bt_all);
}
public void initAction(){
bt_add.setOnClickListener(this);
bt_all.setOnClickListener(this);
}
@Override
public void onClick(View v) {
switch (v.getId()) {
case R.id.id_bt_add:
add();
break;
case R.id.id_bt_all:
Intent intent=new Intent(this,StuffList.class);
startActivity(intent);
break;
}
}
public void add(){
String stuffName=et_stuffName.getText().toString().trim();
int stuffAmount=Integer.parseInt(et_stuffAmount.getText().toString().trim());
float stuffPrice=Float.parseFloat(et_stuffPrice.getText().toString().trim());
Stuff stuff=new Stuff();
stuff.setStuffName(stuffName);
stuff.setStuffAmount(stuffAmount);
stuff.setStuffPrice(stuffPrice);
mDataBase=mHelper.getWritableDatabase();
ContentValues contentValues=new ContentValues();
contentValues.put("stuff", stuff.getStuffName());
contentValues.put("amount", stuff.getStuffAmount());
contentValues.put("price", stuff.getStuffPrice());
long number=mDataBase.insert("LIQI", null,contentValues);
if(number==-1){
Toast.makeText(this, "添加失败",1).show();
}else {
et_stuffAmount.setText("");
et_stuffName.setText("");
et_stuffPrice.setText("");
Toast.makeText(this, "添加成功,物品条数"+number,1).show();
}
mDataBase.close();
}
}
7.Manifest
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.LIQI.Stuff"
android:versionCode="1"
android:versionName="1.0" >
<uses-sdk
android:minSdkVersion="8"
android:targetSdkVersion="17" />
<application
android:allowBackup="true"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
>
<activity
android:name=".MainActivity"
android:label="@string/app_name" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity android:name="com.LIQI.Stuff.StuffList"></activity>
</application>
</manifest>
五、 实验结果
程序界面显示
本科实验报告课程名称实验项目实验地点专业班级学生姓名指导教师Android设计与开发Android课程实验学号年月日太原理工大学学…
报告编号第5组综合课程设计报告基于Android平台的记事本的设计与实现学生姓名指导教师所在系电子工程系所学专业计算机科学与技术班…
实验报告课程名称手机应用开发实验名称Android实验院系信息与控制工程学院专业班级姓名学号指导教师20xx年月日实验一一实验名称…
南昌航空大学实验报告二〇##年一月六日课程名称:移动终端编程技术实验名称:Android组件通信和后台服务班级:姓名:同组人:指导…
报告编号第5组综合课程设计报告基于Android平台的记事本的设计与实现学生姓名指导教师所在系电子工程系所学专业计算机科学与技术班…
实验报告课程名称手机应用开发实验名称Android实验院系信息与控制工程学院专业班级姓名学号指导教师20xx年月日实验一一实验名称…
移动互联网开发Android实验报告姓名万思学号专业指导老师张华完成日期20xx1116目录实验一Android开发环境的搭建41…
实验三Android网络通信实验目的本实验的目的是使学生深入了解利用Intent实现进程间的通信过程学会利用Intent进行Act…
电子信息学院实验报告书课程名:《操作系统原理》题目:实验三Android的控制层开发实验类别:【验证、设计】班级:学号:姓名:1、…
